SquidTasks/documentation/UE5IntegrationGuide.md

This guide will show you how to integrate Squid::Tasks into an Unreal Engine 5 game project.

Prerequisites

To use this guide, you must have:

• An installation of Unreal Engine 5, built from source code. If you don't have this yet, This Guide published by Epic will walk you through the process of downloading the source code, doing the initial setup, and compiling the source code. Note that this guide is for Unreal Engine 4. There isn't an official guide out for Unreal Engine 5 yet, because as of this writing UE5 has not officially released, so you'll need to do a little searching to find the UE5 source.
• An Unreal Engine game project, configured to use C++. If you don't have this yet, This Guide published by Epic will guide you though the process of creating a new project. Remember to configure your project to use C++, not blueprints!

Step 1: Enabling Compiler Support

(NOTE: If you're compiling with C++20, you should skip this step and go directly to Step 2. If you're not sure which language standard you're compiling with, it's best to assume you're using an earlier standard than C++20.)

Before we can use C++ coroutines, we need to tell the compiler to enable support for coroutines. In previous versions of Unreal, we would've needed to make edits to engine files, but in Unreal Engine 5, this can be done easily through user configuration files. Specifically, we will be editing the Target files for our project.

The name of the files we need to edit are different from game to game. If our game project was called MyGame, then we'd need to edit a file called MyGame.Target.cs, and a file called MyGameEditor.Target.cs, and they'll both probably be located at <project directory>/Source/MyGame[Editor].Target.cs

We'll document the process for MyGameEditor.Target.cs, and the process will be identical for MyGame.Target.cs.

The contents of MyGameEditor.Target.cs should look something like this, although again it will differ from game to game:

// Copyright Epic Games, Inc. All Rights Reserved.

using UnrealBuildTool;
using System.Collections.Generic;

public class MyGameEditorTarget : TargetRules
{
	public GameEditorTarget( TargetInfo Target) : base(Target)
	{
		Type = TargetType.Editor;
		DefaultBuildSettings = BuildSettingsVersion.V2;
	}
}

All we need to do is add a single line at the bottom of the constructor of GameEditorTarget:

bEnableCppCoroutinesForEvaluation = true;

Once this is enabled, start a build. It may take a while, so it's a good idea to have this running while you work on the next steps.

Step 2: Adding the Squid::Tasks Plugin

The Squid::Tasks source code is maintained in two different formats: One for standalone projects, and one as an Unreal Engine plugin. Since we're integrating into Unreal Engine 5, we'll use the Unreal Engine plugin.

1. Locate your game project's directory (It's the directory that contains the file <project name>.uproject).
2. Within your project directory, find and open the directory called Plugins. If it doesn't exist yet, create it.
3. In a separate window, open the SquidTasks source code and navigate into the unreal/Plugins directory.
4. Copy the SquidTasks directory from the Squid::Tasks source into your project's Plugins directory.

Step 3: Add SquidTasks as a dependency of our game module

Now that we've added our plugin, we need to tell our game's module to rely on it.

The name of the file we need to edit is different from game to game. If our game project was called MyGame, then we'd need to edit a file called MyGame.Build.cs, and it will probably be located at <project directory>/Source/MyGame/MyGame.Build.cs.

The contents of this file should look something like this, although again it will differ from game to game, and from module to module:

using UnrealBuildTool;

public class MyGame : ModuleRules
{
	public MyGame(ReadOnlyTargetRules Target) : base(Target)
	{
		PCHUsage = PCHUsageMode.UseExplicitOrSharedPCHs;

		PublicDependencyModuleNames.AddRange(new string[] { "Core", "CoreUObject", "Engine", "InputCore" });
	}
}

To add a dependency to SquidTasks, all we need to do is add an entry to PublicDependencyModuleNames so that it looks like this:

PublicDependencyModuleNames.AddRange(new string[] { "Core", "CoreUObject", "Engine", "InputCore", "SquidTasks" });

Step 4: Write a Task

Squid::Tasks has now been integrated into our game module. To verify that it works, let's make a new actor and verify that tasks compile and run.

In the same directory as the ____.Build.cs file we just edited, make a new file called TaskHelloWorld.h, and paste in the following code:

#pragma once
#include "SquidTasks/Task.h"
#include "TaskHelloWorld.generated.h"

UCLASS()
class ATaskHelloWorld : public AActor
{
	GENERATED_BODY()
public:
	ATaskHelloWorld() {
		PrimaryActorTick.bCanEverTick = true;
	}

	virtual void BeginPlay() override {
		Super::BeginPlay();
		MyTaskInstance = HelloWorldTask();
	}

	virtual void Tick(float DT) override {
		Super::Tick(DT);
		MyTaskInstance.Resume();
	}

private:
	Task<> MyTaskInstance;

	Task<> HelloWorldTask() {
		UE_LOG(LogTemp, Log, TEXT("Hello world at the beginning of the task!"));

		co_await Suspend();

		UE_LOG(LogTemp, Log, TEXT("Hello world on the next frame!"));

		while (true) {
			UE_LOG(LogTemp, Log, TEXT("Hello world inside the while loop!"));

			co_await Suspend();
		}
	}
};

In this example code, the HelloWorldTask() member function is a C++ coroutine written using the Squid::Tasks library.

In BeginPlay(), we call our HelloWorldTask() and store the task instance in the MyTaskInstance member variable. In Tick(), all we do is call Resume() on our stored task instance.

We can now write stateful game code inside of HelloWorldTask(), and our actor will resume our task once per frame.

Step 5: Test our Task

To test our task, start up the Unreal Editor, and load the game project that contains your ATaskHelloWorld actor.

First, open the "Place Actors" Window:

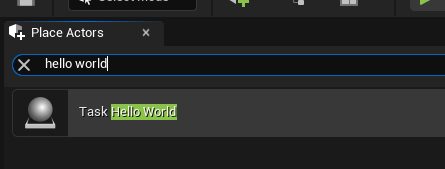

Next, search for the "Task Hello World" actor, and drag one into the scene:

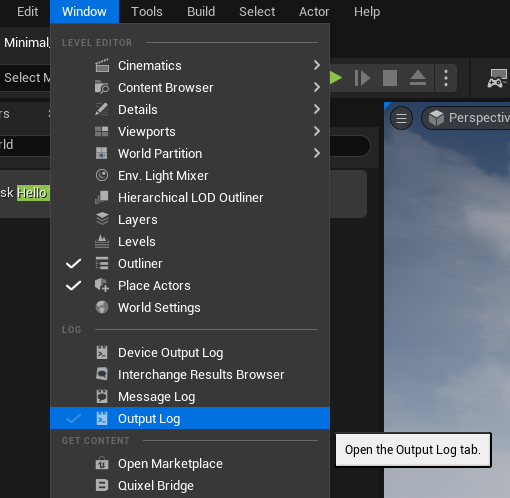

In order to see the "hello world" text we're logging, we need to open the Output Log:

Finally, we're ready to hit Play to test our actor. We'll know it worked if we see this text in the Output Log:

LogTemp: Hello world at the beginning of the task!
LogTemp: Hello world on the next frame!
LogTemp: Hello world inside the while loop!
LogTemp: Hello world inside the while loop!
LogTemp: Hello world inside the while loop!
LogTemp: Hello world inside the while loop!
LogTemp: Hello world inside the while loop!
LogTemp: Hello world inside the while loop!

Squid::Tasks has now been successfully integrated into our game project!
